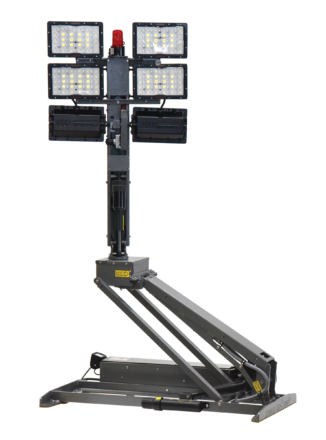

KL Series Knight Slim Tower
The Knight Series
Looking for a mid-size light tower? The Knight Series delivers a reach of nearly 7.5’ from its base. These towers are manufactured using aircraft-grade aluminum for lightweight strength, while their mid-size footprint makes them ideal for apparatus with limited space, making them a favorite among mobile lighting towers. The Knight Light can rotate 360 degrees and tilt, raise and lower with ease to direct scene lighting. Unlike truck-mounted perimeter LEDs, this gives crews the ability to elevate all of the usable light.
Technical Data (AC Version)
Part Number: KL409A-H4
Lighting: (2) FireTech 240W; (2) FireTech 60W
Power Requirements: 115V AC – 960W
Total Output: 70,000 lumens
Dimensions (nested): 12” x 53” x 13”
Dimensions (upright): 87.5” x 53” x 13”
Weight: 165 lbs
Technical Data (DC Version)
Part Number: KL409D-H4
Lighting: (2) FireTech 240W; (2) FireTech 60W
Power Requirements: 12V DC – 960W
Total Output: 70,000 lumens
Dimensions (nested): 12” x 53” x 13”
Dimensions (upright): 87.5” x 53” x 13”
Weight: 165 lbs
Request a Custom Lighting Plan
HiViz LED Lighting provides all the work lighting, scene lighting, and flood lighting a fire apparatus may need. If you would like to learn more about any of our scene lighting products fill out the form below!
