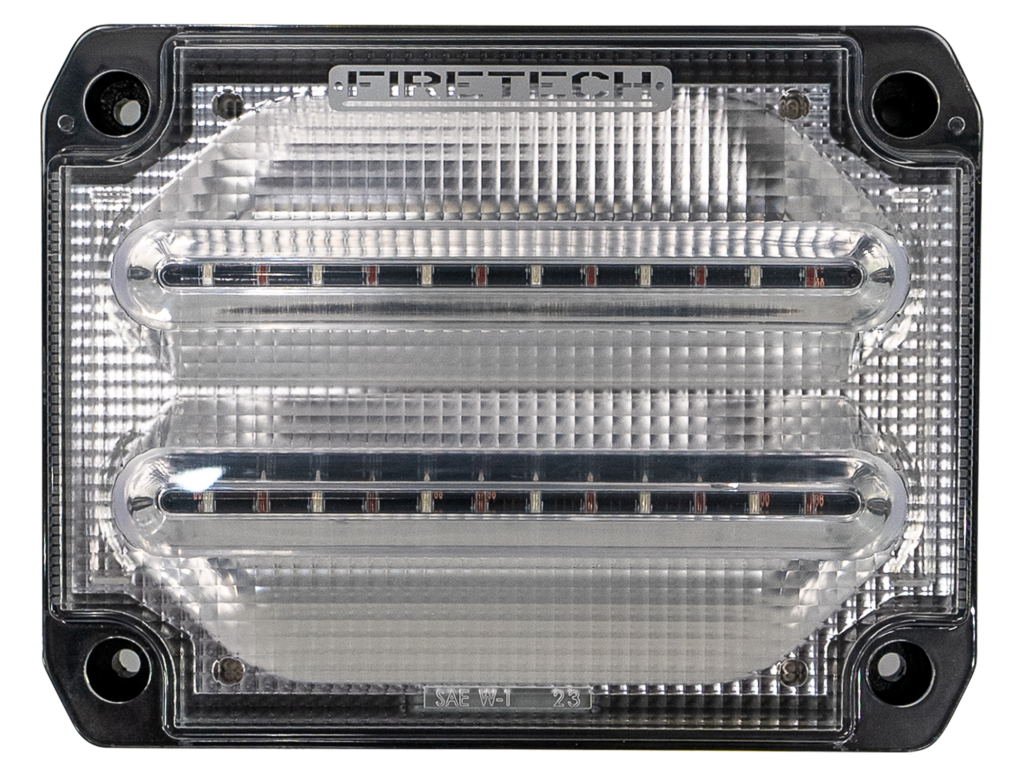

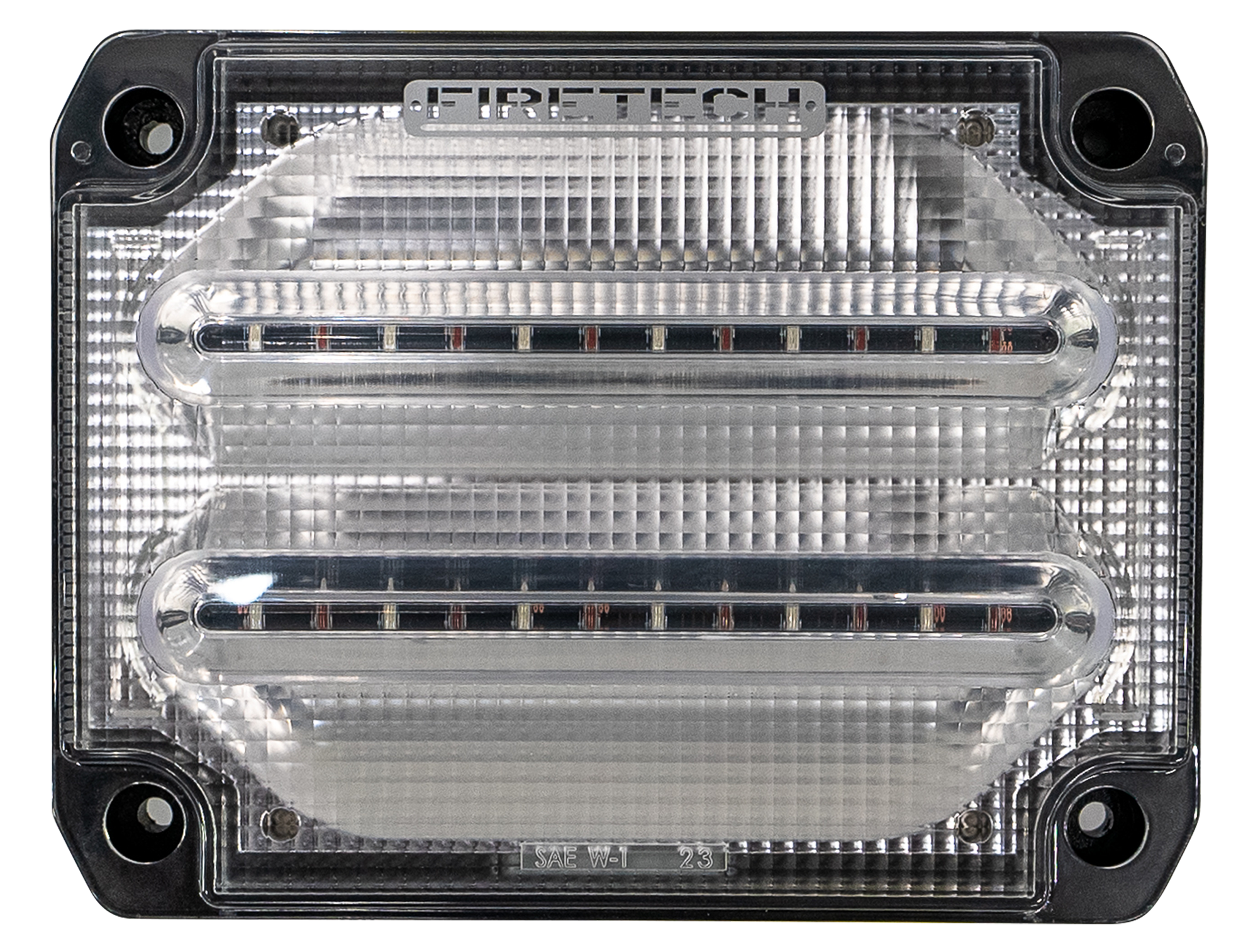

The HVC Guardian Warning Lights are super durable because they are the only fixtures in their class to feature a full-sized aluminum heat sink, and a lens that never comes in contact with the mounting hardware. Overheated circuitry is the number one killer of LEDs in public safety vehicles and moisture intrusion is a close runner up. With the HiViz Connect™ Guardian Series Warning Lights, you can rest assured we’ve got both areas covered and, if we’re wrong, we will replace the fixture through our industry-leading advance exchange lifetime warranty.
Dimensions: 10.66” x 8.69” x 1.95”
Weight: 4.4 lbs.
Bezel: Chrome
Input Voltage DC: 11-32V DC
Max Amp Draw: 3.1 A @12V DC
Max Wattage: 40
Certifications: SAE J595; NFPA1900
These lights are infinitely updatable with unlimited flash patterns. They also feature forward-facing single or dual color LEDs with chrome reflectors and optical collimators for high intensity light output, plus side-firing LEDs that illuminate the side of the truck which increases its visibility to other drivers.
Crack-Free Corner Design
Screws never come in contact with lens, preventing cracking and moisture intrusion. They’re so strong you can hang a Hummer from them!
Precision Linear Optics
Using a linear optic this fixture can generate an ultra-wide beam that is visible for miles.
High Performance Aluminum Heat Sink
Excessive temperature is the #1 killer of LED products in the public safety industry. Most warning lights are designed with a thin plate of sheet metal behind the LEDs. Instead, we use an oversized aluminum heat sink which keeps the fixture cooler. A cooler fixture means you’re less likely to need our warranty. But if you do, we’ve got your back for life.
Nitto Temish Vent
The second most common killer of LED lights in our industry is moisture. Our Nitto TEMISH Vent allows moisture to vent ensuring no unwanted condensation or water droplets trapped in the lens. Combining crack-proof corners with the TEMISH vent, you can leave your worries at the station.
Wireless Connectivity
Configure features and settings from a smartphone app, or leverage wireless smart synchronization limiting the need to re-run wiring during apparatus retrofit.
Side Firing LEDs
Viewing angle matters, and more angles means more visibility – especially on windy roads. The HVC Guardian Warning Lights feature both forward-facing LEDs, plus side-firing LEDs that illuminate the side of the truck making the truck more visible to other drivers. Parking off-angle? We’ve got you covered.
HiViz LED Lighting provides all the work lighting, scene lighting, and flood lighting a fire apparatus may need. If you would like to learn more about any of our scene lighting products fill out the form below!
